Observability: Enabling JobRunr Metrics

In this guide, we will unfold JobRunr’s observability features that go beyond simply logging. We’ll explore how to enable publishing various metrics to integrate with your favourite monitoring platform.

⚠️ Warning: Adding any metrics to your application will generally impact performance as it adds extra computational/IO overhead. Only do this if you intent to monitor them and be sensible with metric scraping configurations.

If you are interested in integrating tracing capabilities into your observability platform, please consult the observability: tracing guide.

Prerequisites

• JobRunr 8.0.0 or later
• You already know how to configure JobRunr
• Basic knowledge of Micrometer

Context

Many companies rely on a centralized monitoring platform to troubleshoot their different services. These platforms work by collecting metrics, among other things, from instrumented services. JobRunr fits seamlessly into this ecosystem by exposing both job-based metrics (e.g. job counts) and server-based metrics (e.g. resource usage of your active background job servers). These can be configured individually.

Under the hood, JobRunr uses Micrometer as a facade layer to connect to your existing monitoring system. JobRunr is tool agnostic: you can use any existing observability platform you already have in place. Micrometer supports a bunch of them: from Graphite to CloudWatch and Prometheus, and more. Additionally, Micrometer makes it easy to integrate with various JVM frameworks.

Let’s first start with just a base observability framework to then showcase how JobRunr’s metrics integrate with the Micrometer metrics system.

Setup

First, we add the following dependencies to our application, using Gradle, feel free to adapt to Maven or your preferred build tool. This naturally includes JobRunr and Micrometer. Note, in this guide, we use Prometheus, a popular open source system monitoring platform, to collect and visualize the exposed JobRunr metrics.

Although we use Prometheus, you may replace the dependency by another that works with your platform of choice. Micrometer offers several other implementations.

dependencies {
    implementation 'org.jobrunr:jobrunr:8.1.0'
    // or implementation 'org.jobrunr:jobrunr-pro:8.1.0' for JobRunr Pro users
    implementation 'io.micrometer:micrometer-registry-prometheus:1.15.4' // always check for a newer version!
}

dependencies {
    implementation 'org.jobrunr:jobrunr-spring-boot-3-starter:8.1.0'
    // or implementation 'org.jobrunr:jobrunr-spring-boot-3-starter:8.1.0' for JobRunr Pro users
    implementation 'org.springframework.boot:spring-boot-starter-actuator'
    implementation 'io.micrometer:micrometer-registry-prometheus'
}

management.endpoints.web.exposure.include=*
management.endpoint.health.show-details=always

{
  "names": [
    "jvm.gc.pause",
    "jvm.buffer.memory.used",
    "jvm.memory.used",
    "jvm.buffer.count",
    // ...
  ]
}

dependencies {
    implementation 'org.jobrunr:quarkus-jobrunr:8.1.0'
    // or implementation 'org.jobrunr:quarkus-jobrunr-pro:8.1.0' for JobRunr Pro users
    implementation 'io.quarkus:quarkus-micrometer-registry-prometheus'
}

dependencies {
    implementation 'org.jobrunr:jobrunr-micronaut:8.1.0'
    // ... other micronaut dependencies
    implementation 'io.micronaut:micronaut-management'
    implementation 'io.micronaut.micrometer:micronaut-micrometer-core'
    implementation 'io.micronaut.micrometer:micronaut-micrometer-registry-prometheus'
}

micronaut:
  metrics:
    enabled: true
endpoints:
  metrics:
    enabled: true
    sensitive: false

{
  "names": [
    "jvm.gc.pause",
    "jvm.buffer.memory.used",
    "jvm.memory.used",
    "jvm.buffer.count",
    // ...
  ]
}

To learn more about micrometer follow: https://docs.micrometer.io/micrometer/reference/.

JobRunr Configuration

Next, let’s try to enable the JobRunr specific metrics. As mentioned before and in the JobRunr Metrics docs, there are background job server metrics and job metrics; both can be toggled individually:

var meterRegistry = new PrometheusMeterRegistry(PrometheusConfig.DEFAULT);
JobRunr.configure()
  // ... other config
  .useMicroMeter(new JobRunrMicroMeterIntegration(meterRegistry))

jobrunr.jobs.metrics.enabled=true
jobrunr.background-job-server.metrics.enabled=true

quarkus.jobrunr.jobs.metrics.enabled=true
quarkus.jobrunr.background-job-server.metrics.enabled=true

jobrunr.jobs.metrics.enabled=true
jobrunr.background-job-server.metrics.enabled=true

This configuration adds instrumentation at to the StorageProvider (for frameworks, this is enabled with jobrunr.jobs.metrics.enabled) and the BackgroundJobServer.

• The StorageProvider instrumentation adds different statistics to the metrics (e.g., job counts per state, number of recurring jobs and number of background job servers). These metrics are published with prefix jobrunr.jobs.by-state and identifiable by their tags. Therefore you’ll need to provide a the tag of interest. For instance, if you are using a framework, the actual metric value can be retrieved by visiting /metrics/jobrunr.jobs.by-state?tag=state:SUCCEEDED.
• The BackgroundJobServer instrumentation makes available metrics on resource usage by the server, e.g., CPU usage, memory usage, etc. These metrics are retrieved using OperatingSystemMXBean. The server metrics also include other background job server configuration values, such as the poll interval and the worker pool size but also the license key expiry date for JobRunr Pro users. These metrics are published with prefix jobrunr.background-job-server.

⚠️ Warning: Be careful with enabling StorageProvider metrics as this generates more database load. Ideally, only enable it on the same server running the dashboard.

JobRunr Pro Job Timings

In addition to StorageProvider and BackgroundJobServer metrics, JobRunr Pro can instrument job executions to export processing times and other metrics like job failure count per job type. For the specific metrics, see the documentation page: Micrometer job timings.

You can enable this instrumentation as follows:

var meterRegistry = new PrometheusMeterRegistry(PrometheusConfig.DEFAULT);
JobRunr.configure()
  // ... other config
  .useMicroMeter(new JobRunrMicroMeterIntegration(meterRegistry, /* publishJobTimings */ true))

jobrunr.jobs.metrics.micrometer-timers.enabled=true

quarkus.jobrunr.jobs.metrics.micrometer-timers.enabled=true

jobrunr:
  jobs:
    metrics:
      micrometer-timers:
        enabled: true

Of course, you also need a running BackgroundJobServer.

Furthermore, if your jobs are labelled with the following format key:value (e.g., customer:a, building:z), you can instruct JobRunr to publish the above metrics with these job labels.

var meterRegistry = new PrometheusMeterRegistry(PrometheusConfig.DEFAULT);
JobRunr.configure()
  // ... other config
  .useMicroMeter(new JobRunrMicroMeterIntegration(meterRegistry, /* labelsToPublish */ "customer", "building"))

jobrunr.jobs.metrics.micrometer-timers.enabled=true
jobrunr.jobs.metrics.micrometer-timers.labels-to-publish=customer,building

quarkus.jobrunr.jobs.metrics.micrometer-timers.enabled=true
quarkus.jobrunr.jobs.metrics.micrometer-timers.labels-to-publish=customer,building

jobrunr:
  jobs:
    metrics:
      micrometer-timers:
        enabled: true
        labels-to-publish: customer,building

With the above, if a Job is labelled with customer:a, the tag job.labels.customer=a is added to the reported metrics by when executing that job.

Be extra careful when enabling this option and make sure the label values are finite to avoid the tag cardinality explosion. Otherwise, it could lead to huge performance issues and increased expenses.

💡 JobRunr include other tags: e.g., the job type–jobSignature–, the priority queue name, the dynamic queue name, the server name and the server tag. Make sure the values of these attributes are always predictable and finite, for instance always give a name to your background job servers. You can rely on tools from you platform of choice to filter out some tags. For instance, you can instruct Prometheus to only keep some labels with labelkeep or drop any label you don’t want with labeldrop.

Scrape and Visualize Metrics with Prometheus

Micrometer itself does not ingest these values: it merely provides a convenient way to expose them. A popular monitoring tool is Prometheus that can scrape an endpoint every x milliseconds to aggregate, transform, visualize, … the data.

Prometheus Setup

First, let’s make sure there is an endpoint from which Prometheus can fetch the metrics.

HttpServer server = HttpServer.create(new InetSocketAddress(8080), 0);

server.createContext("/prometheus", exchange -> {
    String response = meterRegistry.scrape(); // meterRegistry should be the same as the one provided to JobRunr
    exchange.getResponseHeaders().add("Content-Type", "text/plain; version=0.0.4");
    exchange.sendResponseHeaders(200, response.getBytes().length);
    try (OutputStream os = exchange.getResponseBody()) {
        os.write(response.getBytes());
    }
});

new Thread(server::start).start();

micronaut:
  metrics:
    enabled: true
    export:
      prometheus:
        enabled: true
        step: PT1M
endpoints:
  prometheus:
    enabled: true
    sensitive: false

We still have to configure Prometheus to look for the data there. Let’s spin up a simple Prometheus docker image to showcase this. Add this to your compose.yml:

  prometheus:
    image: prom/prometheus
    ports:
      - "9090:9090"
    volumes:
      - ./prometheus.yml:/etc/prometheus/prometheus.yml
    restart: unless-stopped

And create a prometheus.yml file in the root of your project:

global:
  scrape_interval: 5s

scrape_configs:
  - job_name: "prometheus_jobr"
    metrics_path: '/prometheus'
    static_configs:
      - targets: [ 'host.docker.internal:8080' ]

global:
  scrape_interval: 5s

scrape_configs:
  - job_name: "prometheus_jobr"
    metrics_path: '/actuator/prometheus'
    static_configs:
      - targets: [ 'host.docker.internal:8080' ]

global:
  scrape_interval: 5s

scrape_configs:
  - job_name: "prometheus_jobr"
    metrics_path: '/q/metrics'
    static_configs:
      - targets: [ 'host.docker.internal:8080' ]

global:
  scrape_interval: 5s

scrape_configs:
  - job_name: "prometheus_jobr"
    metrics_path: '/prometheus'
    static_configs:
      - targets: [ 'host.docker.internal:8080' ]

Here we tell Prometheus to scrape the data every 5 seconds by connecting to the targets. The metrics_path tells Prometheus which endpoint exposes the metrics.

Detect Spikes with Prometheus Dashboard

Let’s create an endpoint to create 1000 jobs showcasing how Prometheus visualizes the sudden spike in jobs.

public class AdminController {

  // This is a GET endpoint at /bulk-add-cards
  public void bulkAddCreditCards() {
    jobScheduler.enqueue(
      IntStream.range(0, 1000).boxed(),
      i -> System.out.println("creating new credit card #" + i)
    );
  }
}

@Controller
public class AdminController {
  private final JobScheduler jobScheduler;

  public AdminController(JobScheduler jobScheduler) {
    this.jobScheduler = jobScheduler;
  }

  @GetMapping({"/bulk-add-cards"})
  public void bulkAddCreditCards() {
    jobScheduler.enqueue(
      IntStream.range(0, 1000).boxed(),
      i -> System.out.println("creating new credit card #" + i)
    );
  }
}

@Controller
public class AdminController {
  private final JobScheduler jobScheduler;

  public AdminController(JobScheduler jobScheduler) {
    this.jobScheduler = jobScheduler;
  }

  @Get("/bulk-add-cards")
  public void bulkAddCreditCards() {
    jobScheduler.enqueue(
      IntStream.range(0, 1000).boxed(),
      i -> System.out.println("creating new credit card #" + i)
    );
  }
}

@ApplicationScoped
public class AdminResource {
  JobScheduler jobScheduler;

  public AdminResource(JobScheduler jobScheduler) {
    this.jobScheduler = jobScheduler;
  }

  @GET
  @Path("/bulk-add-cards")
  public void bulkAddCreditCards() {
    jobScheduler.enqueue(
      IntStream.range(0, 1000).boxed(),
      i -> System.out.println("creating new credit card #" + i)
    );
  }
}

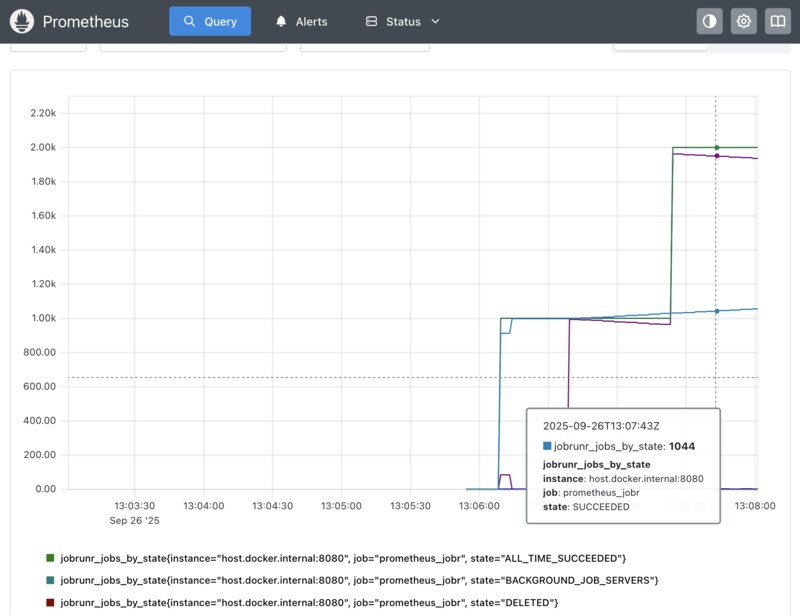

If you spin up the above container using docker compose up and start your application, you can navigate to http://localhost:9090 and visualize one of JobRunr’s metrics to see the effect of incoming and processed jobs. The following graph shows an influx of several 1000 job spikes after continually hitting http://localhost:8080/bulk-add-cards as a test:

You can even take this a step further by involving Grafana and adding scripts that send out Slack messages if the metric rises above a certain level (for instance if a lot jobs start failing).

Configuring Custom Micrometer Registries

If you want to have full control on where JobRunr’s metrics are exported and go beyond the auto-configuration magic. You can directly create and manage instances of the following classes involved in instrumenting JobRunr.

• StorageProviderMetricsBinder requires a StorageProvider and MeterRegistry. This instrumentation provides global statics on the system (number of jobs in each state, number of recurring jobs and number of background job servers). The metric is key is jobrunr.jobs.by-state and identifiable by the state tag. ⚠️ Its lifecycle is tied to the StorageProvider, thus you need to close it before closing the StorageProvider.
• BackgroundJobServerMetricsBinder requires a StorageProvider and MeterRegistry. This instrumentation provides information on the performance of a server (different CPU and memory usage metrics) in addition to server configuration information (e.g., the worker pool size). Should be closed when stopping the BackgroundJobServer.
• MicroMeterJobMetrics requires MeterRegistry and Queues (can be given optional other arguments). This instrumentation provides job timings (e.g., execution time, actively processing jobs, etc., see above for details). It’s a JobServerFilter that needs to be provided to the BackgroundJobServer. See Job Filters for more details.

Conclusion

By configuring job and background server metrics, JobRunr is able to plug into the existing metrics observability system of your framework of choice, relaying job stats and background server resource information to an observability platform such as Prometheus. Close system health monitoring is an indispensable part of improving the quality of your software. As we have seen, JobRunr and JobRunr Pro provides easy ways to expand these, in addition to the builtin JobRunr Dashboard.

Resources

• A JobRunr Pro example repository on observability metrics + Spring Boot is available at https://github.com/jobrunr/example-jobrunr-pro-spring-boot-observability (private repo accessible to JobRunr Pro customers).
